【LL-Line Lights】
Features
- Set up according to different ways to play sidelight, oblique and direct lighting effects
- Mining high-brightness LED dense arrangement, the long and narrow range of illumination
- The diffusion sheet may be added to produce a more uniform light may be used as long backlight use
- This series has a variety of lighting size to choose from, can also be customized according to demand
- It can also be affixed to a heat sink or parallel film, effectively raising 2-3 times the brightness
Applications
- For general lighting, label inspection, printing inspection and bar code reading
- Edge check, glass surface or glossy material
- Stain and dust particles detection
- AOI automatic detection system source

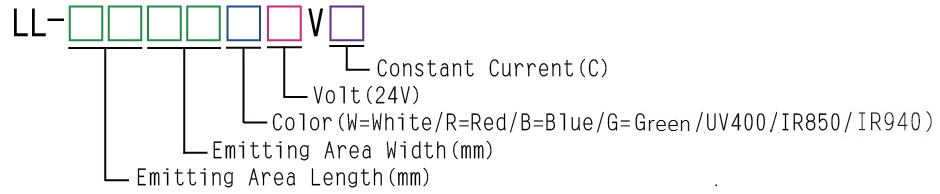

Model Description
Inspect Examples
-
With the light detection packaging surface, the words can be easily identified
-
With the light detection terminal connector, the gap is clearly visible
Specification
Model | Color |
Emitting Area |
Power Consumption |
---|---|---|---|
LL-3015 |
|
30 x 15 |
|
LL-5015 |
|
55 x 15 |
|
LL-5030 |
|
55 x 30 |
|
|
68 x 30 |
|
|
LL-10015 |
|
110 x 15 |
|
LL-10030 |
|
110 x 30 |
|
LL-15015 |
|
150 x 15 |
|
LL-15030 |
|
150 x 30 |
|
LL-20015 |
|
200 x 15 |
|
LL-20030 |
|
200 x 30 |
|
LL-27015 |
|
270 x 15 |
|
LL-27030 |
|
270 x 30 |
|
LL-30015 |
|
300 x 15 | ![]() ![]() ![]() ![]() ![]() |
LL-30030 |
|
300 x 30 | ![]() ![]() ![]() ![]() ![]() |
LL-43515 |
|
435 x 15 | ![]() ![]() ![]() ![]() ![]() |
LL-46030 |
|
460 x 30 | ![]() ![]() ![]() ![]() ![]() |
LL-50030 |
|
500 x 30 | ![]() ![]() ![]() ![]() ![]() |
LL-60030 |
|
600 x 30 | ![]() ![]() ![]() ![]() ![]() |
LL-65030 |
|
650 x 30 | ![]() ![]() ![]() ![]() ![]() |
LL-70030 |
|
700 x 30 | ![]() ![]() ![]() ![]() ![]() |
LL-80015 |
|
800 x 15 | ![]() ![]() ![]() ![]() ![]() |
LL-100015 |
|
1000 x 15 | ![]() ![]() ![]() ![]() ![]() |
LL-125015 |
|
1250 x 15 | ![]() ![]() ![]() ![]() ![]() |
LL-150030 |
|
1500 x 30 | ![]() ![]() ![]() ![]() ![]() |
Note: 1. White
Blue
Green
Red
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
Model | LL-3015 | LL-5015 | LL-5030 | LL-6530 |
Color |
|
|
|
|
Emitting Area | 30 x 15 | 55 x 15 | 55 x 30 | 68 x 30 |
Power Consumption |
|
|
|
|
Model | LL-10015 | LL-10030 | LL-15015 | LL-15030 |
Color |
|
|
|
|
Power Consumption | 110 x 15 | 110 x 30 | 150 x 15 | 150 x 30 |
Power Consumption |
|
|
|
|
Model | LL-20015 | LL-20030 | LL-27015 | LL-27030 |
Color |
|
|
|
|
Power Consumption | 200 x 15 | 200 x 30 | 270 x 15 | 270 x 30 |
Power Consumption |
|
|
|
|
Model | LL-30015 | LL-30030 | LL-43515 | LL-46030 |
Color |
|
|
|
|
Power Consumption | 300 x 15 | 300 x 30 | 435 x 15 | 460 x 30 |
Power Consumption |
|
|
|
|
Model | LL-50030 | LL-60030 | LL-65030 | LL-70030 |
Color |
|
|
|
|
Power Consumption | 500 x 30 | 600 x 30 | 650 x 30 | 700 x 30 |
Power Consumption |
|
|
|
|
Model | LL-80015 | LL-100015 | LL-125015 | LL-150030 |
Color |
|
|
|
|
Power Consumption | 800 x 15 | 1000 x 15 | 1250 x 15 | 1500 x 30 |
Power Consumption |
|
|
|
|
Note: 1. White
Blue
Green
Red
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
