【CL-Coaxial Lights】
Features
- Lighting scope of 25x25 , 50x50 , 100x100 and other customized size are available
- Full range of high transmittance multi-coated lens protection spectroscope, dust easy to remove more suitable for prolonged use
- Built-in light source brightness stepless adjustment ( some models )
- With VISWELL controller can be used for continuous or flash frequency ( STROBE) Lighting Control
Applications
- Non-reflective images or dazzle light bright spot, the most suitable for the detection of specular reflective objects using various features or defects
- Suitable for detecting the use of mirror reflection or high reflection coefficient of the object. For example PCB bare board , the alignment film, defect inspection and identification marks
- All kinds of glass, coated metal, or easy to scratch the surface of the reflective material, depressions or identification mark
- Wafers or flat panel industry of the finished panel, a glass substrate, filter alignment, marking and identification of defect inspection

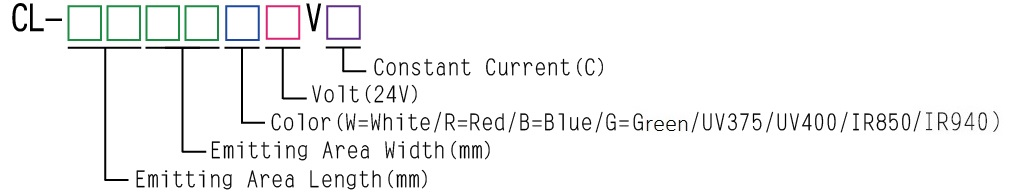

Model Description
Inspect Examples
-

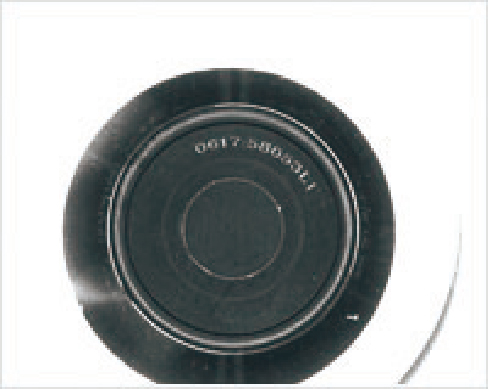

Coaxial with the outer disc defect detection, clear imaging surface scratches
-

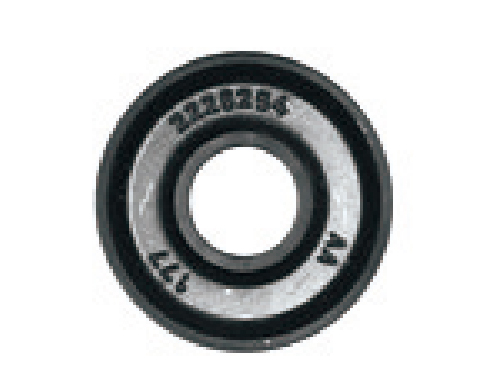

Coaxial detecting external metal parts, surface Braille clear
Specification
(A)Coaxial Lights
| Model | Color |
Emitting Area |
Power Consumption |
|---|---|---|---|
| CL-2020 |
|
20 x 20 |
|
| CL-2525 |
|
26 x 26 |
|
| CL-3535 |
|
35 x 35 |
|
| CL-4040 |
|
40 x 40 |
|
| CL-5050 |
|
57 x 60 |
|
| CL-8080 |
|
80 x 80 |
|
| CL-100100 |
|
100 x 100 |
|
| CL-150140 |
|
150 x 140 |
|
| CL-250120 |
|
250 x 120 |      24V/57.6W |
| CL-250250 | |
250 x 269 | 24V/144W |
| CL-350120 | |
350 x 120 | 24V/86.4W |
Note: 1. White Blue Green Red UV375nm UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
(B)High Power Coaxial Lights
| Model | Color |
Emitting Area |
Power Consumption |
|---|---|---|---|
| HCL-5050 |
|
50 x 50 |
|
| HCL-15050 |
|
158 x 50 |
|
Note: 1. White Blue Red UV375nm UV400nm 2. Unit:mm
(C)Angle Coaxial Lights
| Model | Color |
Emitting Area |
Power Consumption |
|---|---|---|---|
| CL-2525-90D |
|
25 x 25 |
|
| CL-5050-90D |
|
58 x 53.5 | 24V/12W |
| CL-100100-90D |
|
100 x 100 |
|
Note: 1. White Blue Green Red UV400nm 2. Unit:mm
(D)Collimated Coaxial Lights
| Model | Color |
Emitting Area |
Power Consumption |
|---|---|---|---|
| CCL-9595 |
|
95 x 95 |
|
Note: 1. White Blue Green Red 2. Unit:mm
(A)Coaxial Lights
| Model | CL-2020 | CL-2525 | CL-3535 | CL-4040 |
| Color |
|
|
|
|
| Emitting Area | 20 x 20 | 26 x 26 | 35 x 35 | 40 x 40 |
| Power Consumption |
|
|
24V/2.9W |
|
| Model | CL-5050 | CL-8080 | CL-100100 | CL-150140 |
| Color |
|
|
|
|
| Emitting Area | 57 x 60 | 80 x 80 | 100 x 100 | 150 x 140 |
| Power Consumption |
|
|
|
|
| Model | CL-250120 | CL-250250 | CL-350120 |
| Color |
|
|
|
| Emitting Area | 250 x 120 | 250 x 269 | 350 x 120 |
| Power Consumption |
|
|
|
Note: 1. White Blue Green Red UV375nm UV400nm 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm
(B)High Power Coaxial Lights
| Model | HCL-5050 | HCL-15050 |
| Color |
|
|
| Emitting Area | 50 x 50 | 158 x 50 |
| Power Consumption |
|
|
Note: 1. White Blue Red UV375nm UV400nm 2. Unit:mm
(C)Angle Coaxial Lights
| Model | CL-2525-90D | CL-5050-90D | CL-100100-90D |
| Color |
|
|
|
| Emitting Area | 25 x 25 | 58 x 53.5 | 100 x 100 |
| Power Consumption |
|
|
|
Note: 1. White Blue Green Red UV400nm 2. Unit:mm
(D)Collimated Coaxial Lights
| Model | CCL-9595 |
| Color |
|
| Emitting Area | 95 x 95 |
| Power Consumption |
|
Note: 1. White Blue Green Red 2. Unit:mm
