【Tunnel Dome Lights】
Features
The beam can be indirectly multi-angled to the object to be tested, suitable for cylindrical high reflective materials.
The sample surface of the columnar body, enables uniform illumination of the image to the imaging plane. Effective lighting angle up to 160 degrees (close to level), using high power LED to increase diffuse brightness.
It can be used in any cylindrical inspection equipment and irregularly special objects.
Applications
Metal cylinder object, the PCB, automotive plastic surface curved objects, medical drug packaging, easy-to-reflect film detection or identification

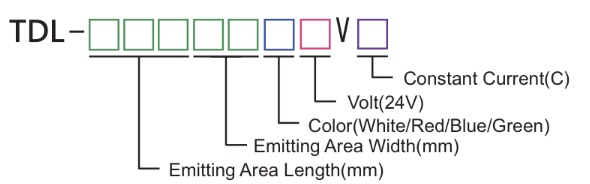

Model Description
Inspect Examples
-
The Coaxial Light is used to detect the metal columnar surface, and the illumination range is narrow, so that it cannot be completely irradiated on th
-
Use Tunnel Dome Lights to cover a wide range, the illumination angle can reach 160 degrees, and illuminate the columnar single-sided surface.
-
Tunnel Dome Lights with coaxial light can fill gap shadow.
Specification
| Model | Color |
Emitting Area |
Dimension |
|---|---|---|---|
| TDL-21045C |
|
200x10 (Ø45mm Circle hole) |
|
| TDL-21010 |
|
200x10 (160x10mm Long hole) |
|
| TDL-40020 |
|
390x20 (350x20mmLong hol) |
|
Note: 1.
White
Blue
Green
Red 2. Unit:mm
| Model | Color |
Emitting Area |
Dimension |
|---|---|---|---|
| TDL-21045C |
|
200x10 (Ø45mm Circle hole) |
|
| TDL-21010 |
|
200x10 (160x10mm Long hole) |
|
| TDL-40020 |
|
390x20 (350x20mmLong hol) |
|
Note: 1. White Blue Green Red 2. Unit:mm
