【RL-Ring Lights】
Features
- Depending on the type of light source, irradiation angle characteristics, the effective working distance from 10 ~ 150mm
- Brightness needs to follow up a selection of ring light LED ringconsisting
- Plus the proliferation of films can be used for reflective or non-reflective detection of the workpiece
- With VISWELL dimmer can be used for continuous or flash frequency (strobe) lighting
- Use a flexible circuit board assembly can be accurately produced at any angle, the ring size of the light source, increase the brightness of the lighting removing dead
- There are a variety of sizes or custom light source available
Applications
- Various types of surface detection and identification of objects
- 2D, 3D precision measurement equipment source
- AOI automatic detection system source
- Label or barcode (Bar code) interpretation
- Edge check, surface scratch inspection
- As a solid microscope light source
- PCB optical point (Fiducial mark) interpretation
- All kinds of defects or printing problems detection

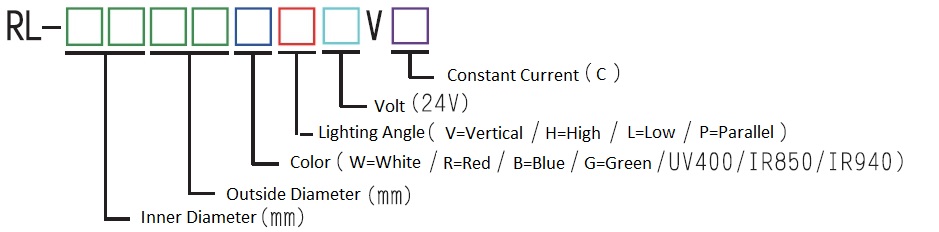

Model Description
Inspect Examples
-
The rupture of the connecting ring was detected with a red ring type light source
-
The low angle ring light source is used to detect the printing embossing on the surface of the metal part
Specification
| Model | Color | Lighting Angle | ID/OD | Working Distance | Power Consumption |
|---|---|---|---|---|---|
| RL-1643 |
|
V(Vertical Angle)/90° | 16/43 | 6 - 35 |
|
| H(High Angle)/70° | 16/43 | 15 - 45 | |||
| L(Low Angle)/30° | 16/43 | 6 - 35 | |||
| RL-2850 |
|
V(Vertical Angle)/90° | 28/50 | 6 - 35 |
|
| H(High Angle)/60° | 28/50 | 25 - 45 | |||
| L(Low Angle)/30° | 28/50 | 10 - 30 | |||
| RL-3667 |
|
V(Vertical Angle)/90° | 36/67 | 30 - 100 |
|
| H(High Angle)/60° | 36/67 | 25 - 80 | |||
| L(Low Angle)/30° | 36/67 | 10 - 30 | |||
| RL-5090 |
|
V(Vertical Angle)/90° | 50/90 | 60 - 100 |
|
| H(High Angle)/70° | 50/90 | 20 - 40 | |||
| L(Low Angle)/45° | 50/90 | 20 - 40 | |||
| RL-2348 |
|
P(Parallel Angle)/0° | 23/48 | 0 - 10 |
|
| RL-4070 |
|
P(Parallel Angle)/0° | 40/70 | 0 - 10 |
|
| RL-5790 |
|
P(Parallel Angle)/0° | 57/90 | 0 - 10 |
|
| RL-70100 |
|
P(Parallel Angle)/0° | 70/100 | 0 - 10 |
|
| RL-92122 |
|
P(Parallel Angle)/0° | 92/122 | 0 - 10 |
|
Note: 1.
White
Blue
Green
Red
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
3. When size above an RL-5090 ring light, it is recommended to use“Square Lights”to create a brighter and more uniform light source.
| Model | RL-1643 | RL-2850 | RL-3667 | RL-5090 |
| Color |
|
|
|
|
| Lighting Angle | V(Vertical Angle)/90° | V(Vertical Angle)/90° | V(Vertical Angle)/90° | V(Vertical Angle)/90° |
| H(High Angle)/70° | H(High Angle)/60° | H(High Angle)/60° | H(High Angle)/70° | |
| L(Low Angle)/30° | L(Low Angle)/30° | L(Low Angle)/30° | L(Low Angle)/45° | |
| ID／OD | 16/43 | 28/50 | 36/67 | 50/90 |
| Working Distance | 6-35(90°) | 6-35(90°) | 30-100(90°) | 60-100(90°) |
| 15-45(70°) | 25-45(60°) | 25-80(60°) | 20-40(70°) | |
| 6-35(30°) | 10-30(30°) | 10-30(30°) | 20-40(45°) | |
| Power Consumption |
24V/2.9W 24V/2.9W 24V/2.9W 24V/2.9W 24V/2.9W 24V/2.9W 24V/2.9W |
24V/3.7W 24V/3.7W 24V/3.7W 24V/3.7W 24V/3.7W 24V/3.8W 24V/3.8W |
24V/6.9W 24V/6.9W 24V/6.9W 24V/6.9W 24V/6.9W 24V/17.3W 24V/17.3W |
24V/10.1W 24V/10.1W 24V/10.1W 24V/10.1W 24V/10.1W 24V/14.4W 24V/14.4W |
| Model | RL-2348 | RL-4070 | RL-5790 | RL-70100 | RL-92122 |
| Color |
|
|
|
|
|
| Lighting Angle | P(Parallel Angle)/0° | P(Parallel Angle)/0° | P(Parallel Angle)/0° | P(Parallel Angle)/0° | P(Parallel Angle)/0° |
| ID／OD | 23/48 | 40/70 | 57/90 | 70/100 | 92/122 |
| Working Distance | 0-10(0°) | 0-10(0°) | 0-10(0°) | 0-10(0°) | 0-10(0°) |
| Power Consumption |
24V/3.9W 24V/3.9W 24V/3.9W 24V/3.9W 24V/3.9W 24V/2.5W 24V/2.5W |
24V/11.8W 24V/11.8W 24V/11.8W 24V/11.8W 24V/11.8W 24V/7.6W 24V/7.6W |
24V/7.9W 24V/7.9W 24V/7.9W 24V/7.9W 24V/7.9W 24V/5.0W 24V/5.0W |
24V/8.4W 24V/8.4W 24V/8.4W 24V/8.4W 24V/8.4W 24V/5.76W 24V/5.76W |
24V/8.6W 24V/8.6W 24V/8.6W 24V/8.6W 24V/8.6W 24V/5.76W 24V/5.76W |
Note: 1. White Blue Green Red UV400nm 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm
3. When size above an RL-5090 ring light, it is recommended to use“Square Lights”to create a brighter and more uniform light source.
