【BL-Back Lights】
Features
- Sub-standard and high-brightness light source, according to necessity to choose their brightness
- Stable output even divergent light source, and can extend the life and maintain low temperature
- The thickness can be divided into general type 25mm and thin 13mm ( high intensity )
- There are a variety of sizes and colors to choose from, it can also be customized according to the needs of use
- “Square Lights”can replace ring lights, to create a brighter and more uniform light source
Applications
- Check the position of objects on a transparent glass substrate
- General reference object position or shape discrimination
- Size, drill and detection pinhole
- Check the edges, or shiny glass surface scratches the surface of the material inspection

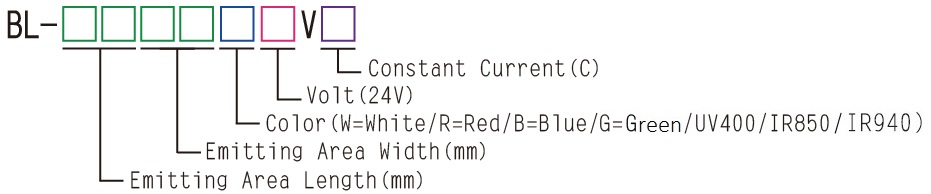

Model Description
Inspect Examples
-
Backlight detection part size, each part is clearly visible aperture
-
Backlight analyte detection side, contrasting black and white
Specification
Model | Color |
Emitting Area |
Power Consumption |
---|---|---|---|
BL-3030 |
|
33 x 31 |
|
BL-6060 |
|
60 x 60 |
|
BL-8080 |
|
86 x 84 |
|
BL-100100 |
|
114 x 114 |
|
BL-150150 |
|
174 x 159 |
|
BL-200200 |
|
214 x 204 | ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
BL-20050 |
|
200 x 50 |
|
BL-30050 |
|
300 x 50 |
|
BL-320260 |
|
320 x 260 | ![]() ![]() ![]() ![]() ![]() |
BL-40050 |
|
400 x 43 | ![]() ![]() ![]() ![]() ![]() |
BL-400300 |
|
400 x 300 | ![]() ![]() ![]() ![]() ![]() |
BL-400400 |
|
428 x 408 | ![]() ![]() ![]() ![]() ![]() |
BL-440152 |
|
440 x 152 | ![]() ![]() ![]() ![]() ![]() |
BL-490190 |
|
490 x 190 | ![]() ![]() ![]() ![]() ![]() |
Note: 1. White
Blue
Green
Red
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
Square Lights
Model | Color |
Emitting Area |
Power Consumption |
---|---|---|---|
BL-6060-20S |
|
60 x 55 (20x20mm Square hole) |
|
BL-110110-10C |
|
110 x 110 (10mm Circle hole) |
|
BL-140140-60S |
|
140 x 140 (60x60mm Square hole) |
|
BL-200200-35S |
|
200 x 200 (35x35mm Square hole) |
|
BL-210210-85S |
|
210 x 210 (85x85mm Square hole) |
|
Note: 1. White
Blue
Green
Red
UV400nm 2. Unit:mm 3. S-Square hole,C-Circle hole
Model | BL-3030 | BL-6060 | BL-8080 | BL-100100 |
Color |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Emitting Area | 33 x 31 | 60 x 60 | 86 x 84 | 114 x 114 |
Power Consumption |
|
![]() ![]()
![]() ![]() |
![]() ![]()
![]() ![]() |
![]() ![]()
![]() ![]() |
Model | BL-150150 | BL-200200 | BL-20050 | BL-30050 |
Color |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Emitting Area | 174 x 159 | 214 x 204 | 320 x 260 | 400 x 43 |
Power Consumption |
|
|
![]() ![]()
![]() ![]() |
![]() ![]()
![]() ![]() |
Model | BL-320260 | BL-40050 | BL-400300 | BL-400400 |
Color |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
Emitting Area | 174 x 159 | 214 x 204 | 320 x 260 | 400 x 43 |
Power Consumption |
![]() ![]()
|
![]() ![]()
|
![]() ![]()
|
![]() ![]()
|
Model | BL-440152 | BL-490190 |
Color |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
Emitting Area | 174 x 159 | 214 x 204 |
Power Consumption |
|
![]() ![]()
|
Note: 1. White
Blue
Green
Red
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
Square Lights
Model | BL-6060-20S | BL-110110-10C | BL-140140-60S | BL-200200-35S | BL-210210-85S |
Color |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
Emitting Area |
60 x 55 (20x20mm Square hole) |
110 x 110 (10mm Circle hole) |
140 x 140 (60x60mm Square hole) |
200 x 200 (35x35mm Square hole) |
210 x 210 (85x85mm Square hole) |
Power Consumption |
|
|
|
|
24V/33.6W(Heat sink not included) or 52W(Heat sink included) |
Note: 1. White
Blue
Green
Red
UV400nm 2. Unit:mm 3. S-Square hole,C-Circle hole
