【LGBL-Light Guide Back Lights】

Features

    • Thin surface illumination can reach 10000 LUX
    • Emitting area, and ordered to follow the demand of different sizes
    • Affordable

Applications

    • Check the position of objects on a transparent glass substrate
    • General reference object position or shape discrimination
    • Size, drill and detection pinhole
    • Check the edges, or shiny glass surface scratches the surface of the material inspection

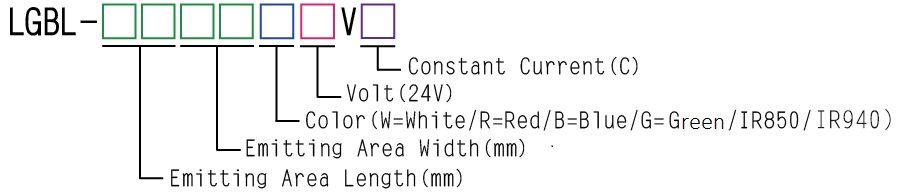

Model Description

Inspect Examples

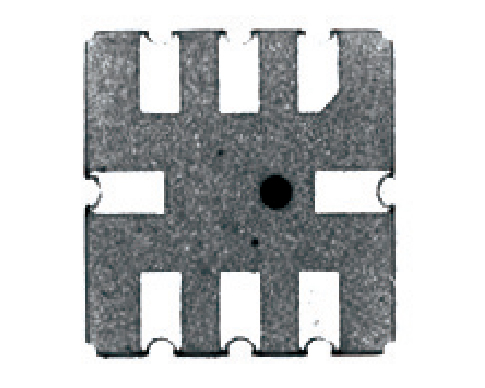

  • Backlight detection part size, each part is clearly visible aperture

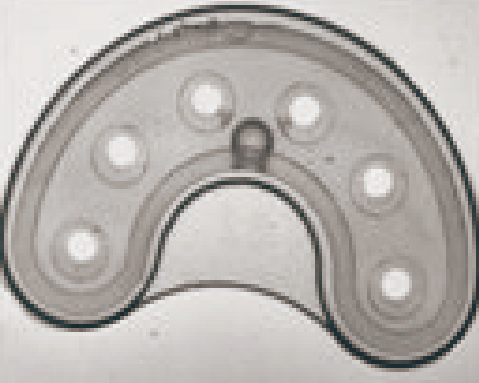

  • Backlight analyte detection side, contrasting black and white

Specification

Model Color

Emitting Area

 Power Consumption
LGBL-280280



 280 x 280

    24V/16.8W
LGBL-295215

     ​

 295 x 215

    24V/16.8W   24V/9.6W
LGBL-400300

   ​

 400 x 300

    24V/31.2W
LGBL-620560

   ​

 620 x 560

    24V/45.6W

Note: 1. White Blue Green Red 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm

Model LGBL-280280 LGBL-295215 LGBL-400300 LGBL-620560
Color
   ​
     ​
   ​
   ​
Emitting Area 280 x 280 295 x 215 400 x 300 620 x 560
Power Consumption

24V/16.8W
24V/16.8W
24V/16.8W
24V/16.8W

24V/16.8W
24V/16.8W
24V/16.8W
24V/16.8W
24V/9.6W

24V/9.6W

24V/31.2W
24V/31.2W
24V/31.2W
24V/31.2W

24V/45.6W
24V/45.6W
24V/45.6W
24V/45.6W

Note: 1. White Blue Green Red 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm
