【TL-Spot Lights】
Features
- Shell heat good, not hot, small size, light weight, low power consumption
- Can replace traditional halogen light source Fiber
- It can be used with all kinds of coaxial lens ( Telecentric Lens) as coaxial light source
- In response to market demand, we developed a single free to switch red, green, blue, white, four-color point source
Applications
- Applied in a coaxial lens ( Telecentric Lens) of the coaxial light source
- As an alternative source fiber light source use
- Applied to the coaxial illumination microscope

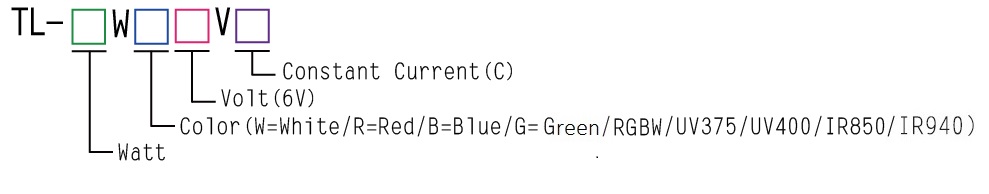

Model Description
Inspect Examples
-

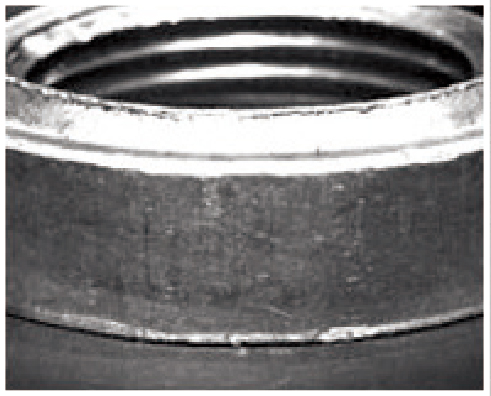

Threaded connection ring detection, highlighting the clear image of objects
-

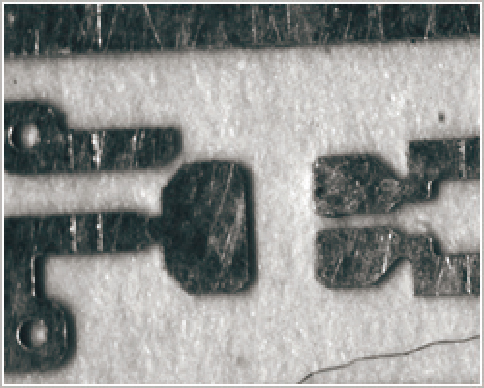

Irradiated metal parts, the shape of the image significantly, some prominent defect
Specification
Model | Color |
Emitting Area |
Power Consumption |
---|---|---|---|
TL-0.5W |
|
Ø6 |
|
TL-1W |
|
Ø6 |
|
TL-1W-N1 | ![]() ![]() ![]() ![]() |
Ø6 | ![]() ![]() ![]() ![]() |
TL-3W |
|
Ø6 |
|
TL-3W-D18 | ![]() ![]() ![]() ![]() |
Ø18 | ![]() ![]() ![]() ![]() |
TL-5W |
|
Ø6 |
|
TL-6W | ![]() ![]() ![]() ![]() |
Ø6 | ![]() ![]() ![]() ![]() |
TL-8W | ![]() ![]() ![]() ![]() |
Ø6 | ![]() ![]() ![]() ![]() |
TL-3W-RGBW | ![]() |
Ø6 |
|
Note: 1. White.Blue.Red.Green
White
Blue
Green
Red
UV375nm
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
Model | TL-0.5W | TL-1W | TL-1W-N1 | TL-3W |
Color |
![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() |
|
Emitting Area | Ø6 | Ø6 | Ø6 | Ø6 |
Power Consumption |
|
|
|
|
Model | TL-3W-D18 | TL-5W | TL-6W | TL-8W | TL-3W-RGBW |
Color | ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() |
![]() ![]() ![]() ![]() |
![]() |
Emitting Area | Ø18 | Ø6 | Ø6 | Ø6 | Ø6 |
Power Consumption |
|
|
|
|
|
Note: 1. White.Blue.Red.Green
White
Blue
Green
Red
UV375nm
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
