【FLC-Collimated Filament Lights】
Features
- Compared with the average light beam parallel approaches without scattering for a longer working distance
- Dodging special effects , do not see the LED particles, and the use of high-power LED brightness up to 1600000 Lux
- Be in accordance with the needs of the client, made a guest service, up to 3000mm ( Customized )
- Fans can be added to improve the brightness of the light source; also provide removable coaxial beam splitter module becomes coaxial light, it can be used in three-dimensional element coaxial detector, for example : SMT and so on ...
Applications
- Textiles, the SMT , the PCB , glass panels, a large area of three-dimensional objects, plug-in terminals , winding metal objects, high-speed printing quality testing and identification, etc ....

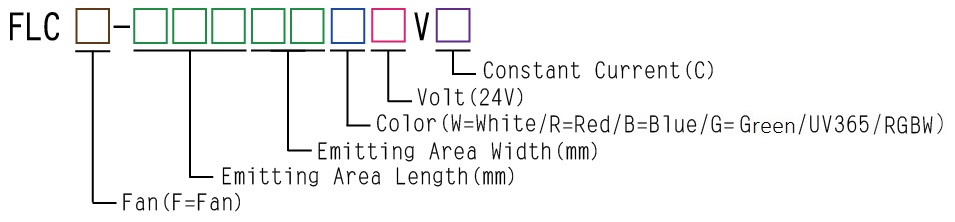

Model Description
Inspect Examples
-

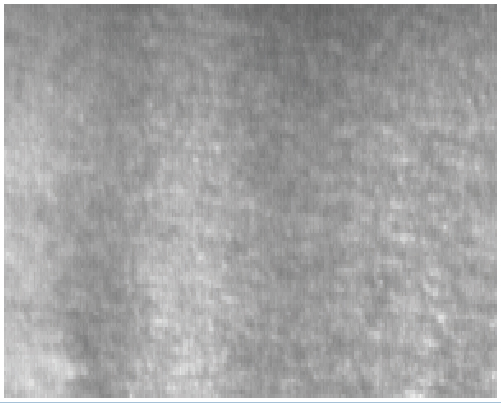

Standard line light detecting a large area of the metal surface uniformity is poor
-

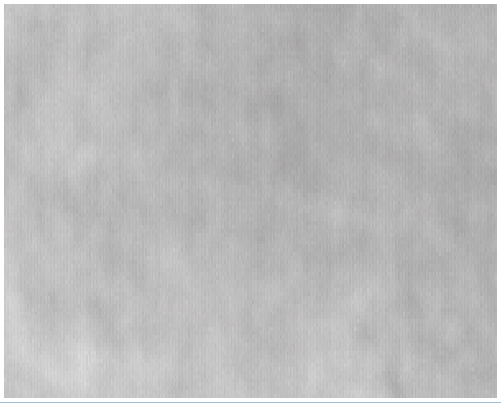

The surface uniformity of the large area metal is detected by using the concentrating line light detection
Specification
| Model | Color | Emitting Area | Power Consumption | ||
|---|---|---|---|---|---|
| Fan(FLCF) | No Fan(FLC) | Fan(FLCF) | No Fan(FLC) | ||
| FLCF-5020 | FLC-5020 |
|
50 x 20 |
|
|
| FLCF-15020 |
|
150 x 20 |
      24V/65W |
24V/39W |
|
| FLCF-25020 | FLC-25020 |
|
250 x 20 | 24V/108W |
24V/65W |
| FLCF-10020 | FLC-10020 |
|
100 x 20 |
|
|
| FLCF-20020 |
|
200 x 20 |
24V/86W |
24V/52W |
|
| FLC-30020 |
|
300 x 20 | 24V/130W |
24V/78W |
|
| FLCF-40020 | FLC-40020 |
|
400 x 20 |
24V/173W |
24V/104W |
| FLCF-50020 | FLC-50020 |
|
500 x 20 |
24V/216W |
24V/130W |
| FLCF-60020 | FLC-60020 |
|
600 x 20 |
24V/259W |
24V/156W |
| FLCF-70020 | FLC-70020 |
|
700 x 20 |
24V/302W |
24V/181W |
| FLCF-80020 | FLC-80020 |
|
800 x 20 |
24V/346W |
24V/207W |
| FLCF-90020 | FLC-90020 |
|
900 x 20 |
24V/389W |
24V/233W |
| FLCF-100020 | FLC-100020 |
|
1000 x 20 |
24V/432W |
24V/259W |
| FLCF-110020 | FLC-110020 |
|
1100 x 20 |
24V/475W |
24V/285W |
| FLCF-120020 | FLC-120020 |
|
1200 x 20 |
24V/518W |
24V/311W |
| FLCF-130020 | FLC-130020 |
|
1300 x 20 |
24V/562W |
24V/337W |
| FLCF-140020 | FLC-140020 |
|
1400 x 20 |
24V/605W |
24V/363W |
| FLCF-150020 | FLC-150020 |
|
1500 x 20 |
24V/648W |
24V/389W |
| FLCF-160020 | FLC-160020 |
|
1600 x 20 |
24V/691W |
24V/415W |
| FLCF-170020 | FLC-170020 |
|
1700 x 20 |
24V/734W |
24V/441W |
| FLCF-180020 | FLC-180020 |
|
1800 x 20 |
24V/778W |
24V/467W |
Note: 1. White Blue
Green Red UV365nm White.Blue.Red.Green 2. Unit:mm
| Model | Fan(FLCF) | FLCF-5020 | FLCF-15020 | FLCF-25020 |
| No Fan(FLC) | FLC-5020 | FLC-15020 | FLC-25020 | |
| Color |
|
|
|
|
| Emitting Area | 50 x 20 | 150 x 20 | 250 x 20 | |
| Power Consumption | Fan(FLCF) |
24V/24W |
24V/65W |
24V/108W |
| No Fan(FLC) |
24V/19W |
24V/39W |
24V/65W |
|
| Model | Fan(FLCF) | FLCF-10020 | FLCF-20020 | FLCF-30020 | FLCF-40020 |
| No Fan(FLC) | FLC-10020 | FLC-20020 | FLC-30020 | FLC-40020 | |
| Color |
|
|
|
|
|
| Emitting Area | 100 x 20 | 200 x 20 | 300 x 20 | 400 x 20 | |
| Power Consumption | Fan(FLCF) |
24V/43W |
24V/86W |
24V/130W |
24V/173W |
| No Fan(FLC) |
24V/26W |
24V/52W |
24V/78W |
24V/104W |
|
| Model | Fan(FLCF) | FLCF-50020 | FLCF-60020 | FLCF-70020 | FLCF-80020 |
| No Fan(FLC) | FLC-50020 | FLC-60020 | FLC-70020 | FLC-80020 | |
| Color |
|
|
|
|
|
| Emitting Area | 500 x 20 | 600 x 20 | 700 x 20 | 800 x 20 | |
| Power Consumption | Fan(FLCF) |
24V/216W |
24V/259W |
24V/302W |
24V/346W |
| No Fan(FLC) |
24V/130W |
24V/156W |
24V/181W |
24V/207W |
|
| Model | Fan(FLCF) | FLCF-90020 | FLCF-100020 | FLCF-110020 | FLCF-120020 |
| No Fan(FLC) | FLC-90020 | FLC-100020 | FLC-110020 | FLC-120020 | |
| Color |
|
|
|
|
|
| Emitting Area | 900 x 20 | 1000 x 20 | 1100 x 20 | 1200 x 20 | |
| Power Consumption | Fan(FLCF) |
24V/389W |
24V/432W |
24V/475W |
24V/518W |
| No Fan(FLC) |
24V/233W |
24V/259W |
24V/285W |
24V/311W |
|
| Model | Fan(FLCF) | FLCF-130020 | FLCF-140020 | FLCF-150020 | FLCF-160020 |
| No Fan(FLC) | FLC-130020 | FLC-140020 | FLC-150020 | FLC-160020 | |
| Color |
|
|
|
|
|
| Emitting Area | 1300 x 20 | 1400 x 20 | 1500 x 20 | 1600 x 20 | |
| Power Consumption | Fan(FLCF) |
24V/562W |
24V/605W |
24V/648W |
24V/691W |
| No Fan(FLC) |
24V/337W |
24V/363W |
24V/389W |
24V/415W |
|
| Model | Fan(FLCF) | FLCF-170020 | FLCF-180020 |
| No Fan(FLC) | FLC-170020 | FLC-180020 | |
| Color |
|
|
|
| Emitting Area | 1700 x 20 | 1800 x 20 | |
| Power Consumption | Fan(FLCF) |
24V/734W |
24V/778W |
| No Fan(FLC) |
24V/441W |
24V/467W |
|
Note: 1. White Blue Green Red UV365nm White.Blue.Red.Green 2. Unit:mm
