【SLL-Adjustable Square Lights】
Features
- Special high-brightness design can shorten the time required for exposure camera for high-speed sample-line inspection
- Adjustable angle back light : provide 0-90 irradiation angle degrees, it can be used with different characteristics
- of the analyte and the working distance
- Can be coupled with the proliferation of film, produce more uniform light to do testing
- There are customized sources are available
Applications
- Surface printing, solder distribution, the IC pin bias and PC board missing pieces and other testing
- Various glass substrate, or wafer lens surface scratches, dust particle detector

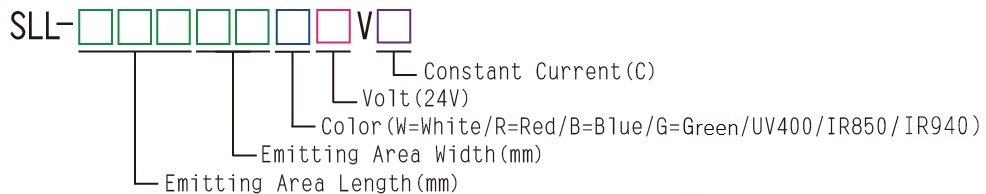

Model Description
Inspect Examples
-

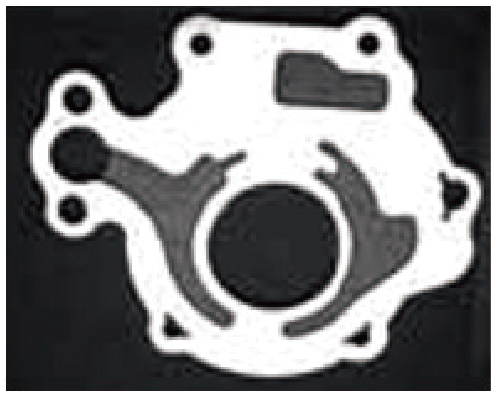

Workpiece edge detection, you can see the contrast is obvious
-

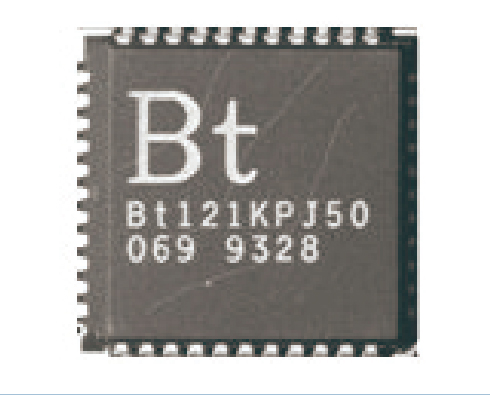

We can see the complete surface of the words, and scratches
Specification
| Model | Color |
Emitting Area |
Power Consumption |
|---|---|---|---|
| SLL-5015 |
|
55 x 15 |
|
| SLL-5030 |
|
55 x 30 |
|
| SLL-10015 |
|
110 x 15 |
|
| SLL-10030 |
|
110 x 30 |
|
| SLL-15015 |
|
150 x 15 |
|
| SLL-15030 |
|
150 x 30 |
|
| SLL-20015 |
|
200 x 15 |
|
| SLL-20030 |
|
200 x 30 |
|
Note: 1.
White
Blue
Green
Red
UV400nm
850nm (Infrared ray)
940nm (Infrared ray) 2. Unit:mm
| Model | SLL-5015 | SLL-5030 | SLL-10015 | SLL-10030 |
| Color |
|
|
|
|
| Emitting Area | 55 x 15 | 55 x 30 | 110 x 15 | 110 x 30 |
| Power Consumption |
|
|
|
|
| Model | SLL-15015 | SLL-15030 | SLL-20015 | SLL-20030 |
| Color |
|
|
|
|
| Emitting Area | 150 x 15 | 150 x 30 | 200 x 15 | 200 x 30 |
| Power Consumption |
|
|
|
|
Note: 1. White Blue Green Red UV400nm 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm
