【DSL-Diffused Square Lights】
Features
- Unique design of the diffuser plate, the light through multiple reflections and scattering, the formation of multi-directional, high brightness uniformity of squaresymmetric light field may be the surface at different angles are uniformly illuminated.
- Indirect diffuse light, easy to apply high specular reflective object detection.
Applications
- IC pin, laser engraving detection
- Positioning device is mounted
- Surface character pattern recognition
- Size detection

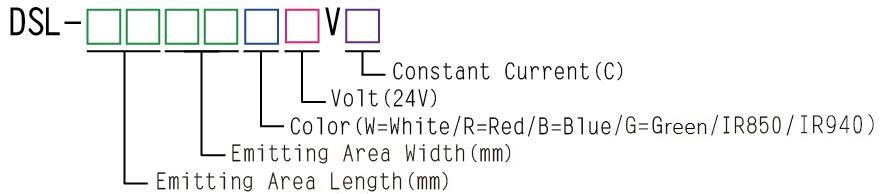

Model Description
Inspect Examples
-
Shadowless light detection effect : IC pin, surface laser lettering clear
-
Dome light detection results : surface laser engraving less clear
Specification
| Model | Color |
Emitting Area |
Power Consumption |
|---|---|---|---|
| DSL-5070 |
|
50 x 50 |
|
| DSL-7090 |       |
70 x 70 |
|
| DSL-90160 |
|
70 x 140 |
|
| DSL-90190 | |
68 x 168 |
|
| DSL-108130 |
|
108 x 108 |
|
| DSL-180220 | |
160 x 200 |
|
Note: 1. White Blue Green Red 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm
| Model | DSL-5070 | DSL-7090 | DSL-90160 |
| Color |
|
|
|
| Emitting Area | 50 x 70 | 70 x 70 | 70 x 140 |
| Power Consumption |
|
|
|
| Model | DSL-90190 | DSL-108130 | DSL-180220 |
| Color |
|
|
|
| Emitting Area | 68 x 168 | 108 x 108 | 160 x 200 |
| Power Consumption |
|
|
|
Note: 1. White Blue Green Red 850nm (Infrared ray) 940nm (Infrared ray) 2. Unit:mm
